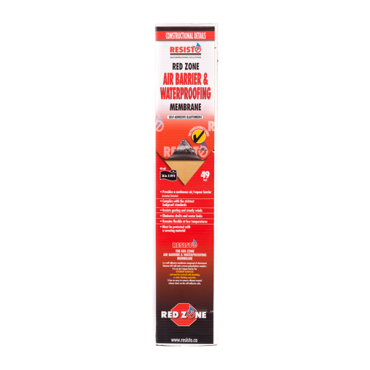

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Self-adhesive membrane composed of elastomeric bitumen (40 mils) and a trilaminate woven polyethylene. It is an air/vapor barrier used as an air and vapor barrier for door and window frames, brick flashing, roof flashing and other construction details.


Benefits

  • Self-adhesive: quick, cost-effective and easy installation
  • Self-sealing
  • Consistent thickness
  • UV resistant (90-day exposure)
  • Can be sprayed with polyurethane foam
  • Remains flexible at low temperatures
  • Provides a continuous air/vapour barrier
  • Eliminates drafts and water leaks

Tests and certifications

ISO-9001
ISO-14001

Function

Roofing

Product roles

Air/Vapor-Barrier Membranes

Building Component

  • Roofs
  • Doors and Windows

Technology

SBS modified bitumen

Types of Slope

Any types of slopes

Substrates

  • Plywood
  • OSB
  • Concrete
  • Polystyrene
  • Gypsum

Surface

Trilaminate woven polyethylene

Underface

Silicone release film

Application

Self-adhesive

Service temperature

-45 °C to 90 °C (-49 °F to 194 °F)

Thickness

40 mils (1 mm)

UV exposure

90 days

Storage instructions

Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 10 ° C (50 °F) before installation.

Minimum application temperature

14 °F (-10 °C)

Tools required

  • Knife
  • Tape measure
  • Smoothing roller

Surface Preparation

The substrate must be clean, dry, and free of dust, grease or other contaminants.

Restrictions

It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride.

REDZONE

Products

Product code

Width

Length

Gross area

Net area

Weight

Weight per skid

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17731

Width

6 in (0.15 m)

Length

50 ft (15 m)

Gross area

25.00 ft² (2.3 m²)

Net area

25 m² (2.3 ft²)

Weight

4.92 lb (2.23 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17734

Width

18 in (0.46 m)

Length

50 ft (15 m)

Gross area

75.00 ft² (6.9 m²)

Net area

75 m² (6.9 ft²)

Weight

14.76 lb (6.70 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17730

Width

4 in (0.10 m)

Length

50 ft (15 m)

Gross area

16.67 ft² (1.5 m²)

Net area

17 m² (1.5 ft²)

Weight

3.32 lb (1.51 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17727

Width

36 in (0.91 m)

Length

50 ft (15 m)

Gross area

150.00 ft² (13.7 m²)

Net area

150 m² (13.7 ft²)

Weight

29.79 lb (13.51 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17736

Width

36 in (0.91 m)

Length

50 ft (15 m)

Gross area

150.00 ft² (13.7 m²)

Net area

141 m² (12.8 ft²)

Weight

29.79 lb (13.51 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17732

Width

9 in (0.23 m)

Length

50 ft (15 m)

Gross area

37.50 ft² (3.5 m²)

Net area

38 m² (3.5 ft²)

Weight

7.54 lb (3.42 kg)

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Product code

17733

Width

12 in (0.30 m)

Length

50 ft (15 m)

Gross area

50.00 ft² (4.5 m²)

Net area

50 m² (4.5 ft²)

Weight

9.84 lb (4.46 kg)

Weight per skid

1,000 lb (454 kg)

Products

Barcodes

Product code

Units per box

Units per skid

Boxes per skid

Weight per skid

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17731 4

Product code

17731

Units per box

6

Units per skid

216

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17734 5

Product code

17734

Units per box

2

Units per skid

72

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17730 7

Product code

17730

Units per box

9

Units per skid

324

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17727 7

Product code

17727

Units per box

1

Units per skid

36

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17736 9

Product code

17736

Units per box

1

Units per skid

36

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17732 1

Product code

17732

Units per box

4

Units per skid

144

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)

AIR AND VAPOR BARRIER MEMBRANE REDZONE

Barcodes

6 23680 17733 8

Product code

17733

Units per box

3

Units per skid

108

Boxes per skid

36

Weight per skid

1,000 lb (454 kg)
