BELOW-GRADE DRAINAGE BOARD

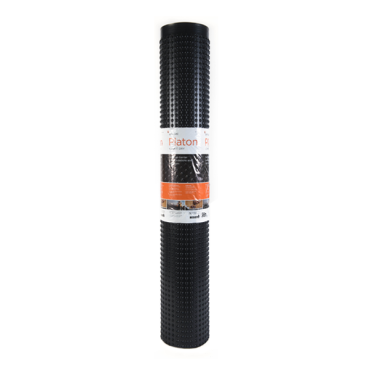

Drainage board is a dimpled high-density polyethylene (HDPE) board that keeps foundations and flooring dry. This product creates a waterproof vapour barrier and an air space, which allows concrete to breathe while controlling moisture.
The following accessories are available for the installation of the board :
• METAL FASTENERS Bulk, 325 units
• METAL FASTENERS Bag, 65 units
• MOLDING, 10 units
• PLUGS, 250 units/bag (8 bags/box)
• WASHERS, 65 units/bag (20 bags/box)
Benefits
- Made of strong, durable HDPE
- Solves problems related to leaks in basements
- Economical
- Can be installed in any weather condition
- No additional protection required
- Can easily bridge ¼” cracks
Tests and certifications
Properties
Function
Waterproofing
Product roles
Drainage Boards
Building Component
Below Grade
Technology
HDPE
Characteristics
Substrates
- Plywood
- Concrete
- PWF
- Masonry blocks
Application
Mechanically fastened
Instructions
