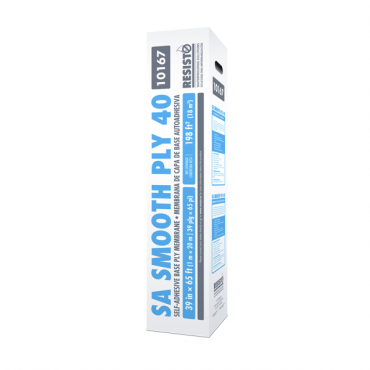

SELF-ADHESIVE BASE PLY MEMBRANE - SA SMOOTH PLY 40

SELF-ADHESIVE BASE PLY MEMBRANE - SA SMOOTH PLY 40 is a self-adhesive base ply membrane composed of SBS modified bitumen. The surface is a UV resistant trilaminate woven polyethylene, while the self-adhesive underface is covered with a silicone split-back release film.


Benefits

  • Non-slip surface
  • Flexible, self-sealing membrane
  • Withstands fluctuations in outdoor temperatures
  • 90 day exposure period

Tests and certifications

Florida-BC-Certification
ICC-ES-Certification
Miami-Dade-Certification
UL
Texas-Department-of-Insurance

Function

Roofing

Product roles

Base Sheet Membranes

Building Component

Roofs

Technology

SBS modified bitumen

Types of Slope

  • Outside low slope
  • Outside very low slope

Type of covering

SBS modified bitumen membranes

Substrates

  • Plywood
  • OSB
  • Asphaltic panel
  • Concrete

Surface

Trilaminate woven polyethylene

Underface

Two parts silicone release film (split-back)

Application

Self-adhesive

Service temperature

-40 °F to 194 °F (-40 °C to 90 °C)

Thickness

40 mils (1.0 mm)

UV exposure

90 days

Storage instructions

Rolls should be stored upright, tape side up, protected from weather damage and UV rays. If the products are stored outdoors, cover them with an opaque protective cover after removing the delivery packaging. Can withstand freezing but must be reactivated to at least 50 °F (10 °C) before installation.

Minimum application temperature

40 °F (4.5 °C)

Tools required

  • Heavy roller
  • Knife
  • Tape measure
  • Smoothing roller

Surface Preparation

The substrate must be clean, dry, and free of dust, grease or other contaminants.

Restrictions

It is not recommended to use a product containing bitumen directly on softwood boards or flexible polyvinyl chloride.

SA SMOOTH PLY 40

Products

Product code

Width

Length

Gross area

Net area

Weight

Weight per skid

SA SMOOTH PLY 40

Product code

10167

Width

39 in (1 m)

Length

65.6 ft (20 m)

Gross area

213.20 ft² (20.0 m²)

Net area

195 m² (18.3 ft²)

Weight

44 lb (20 kg)

Weight per skid

1,157 lb (525 kg)

Products

Barcodes

Product code

Units per box

Units per skid

Boxes per skid

Weight per skid

SA SMOOTH PLY 40

Barcodes

8 86442 10167 9

Product code

10167

Units per box

1

Units per skid

25

Boxes per skid

25

Weight per skid

1,157 lb (525 kg)
